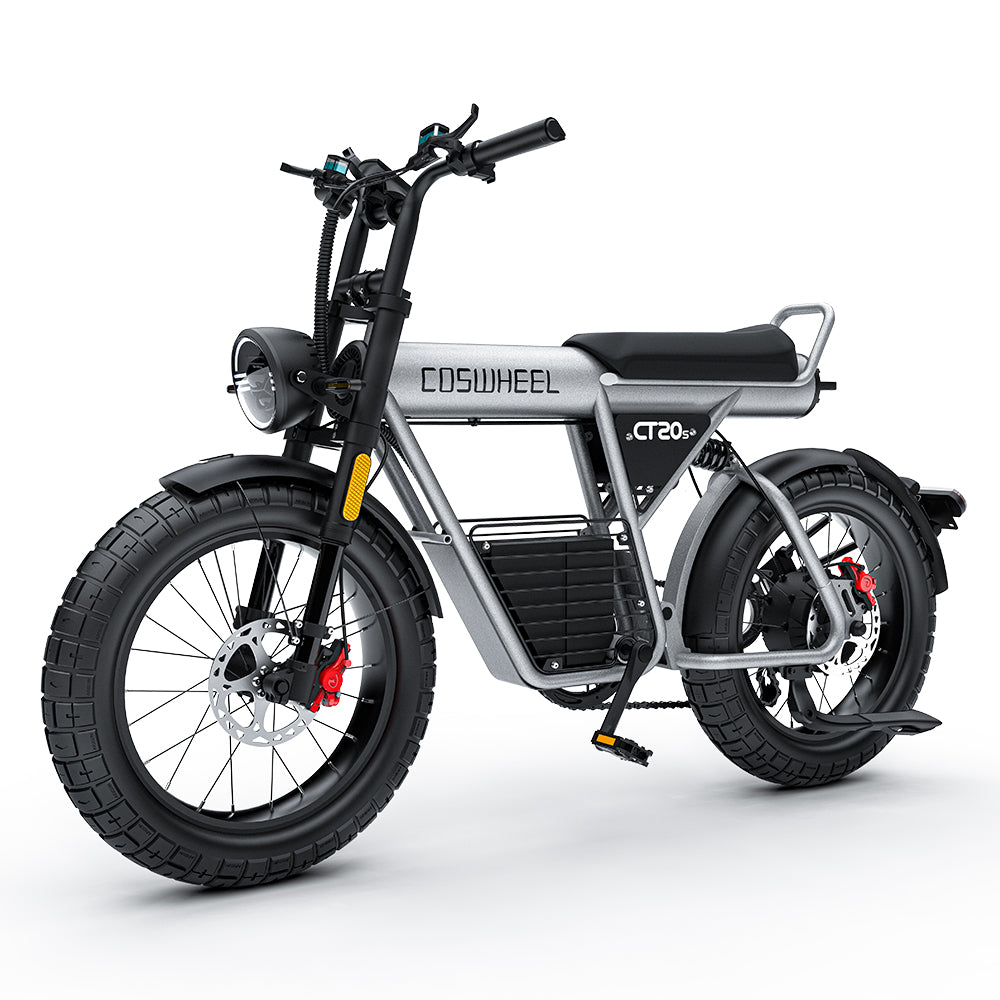

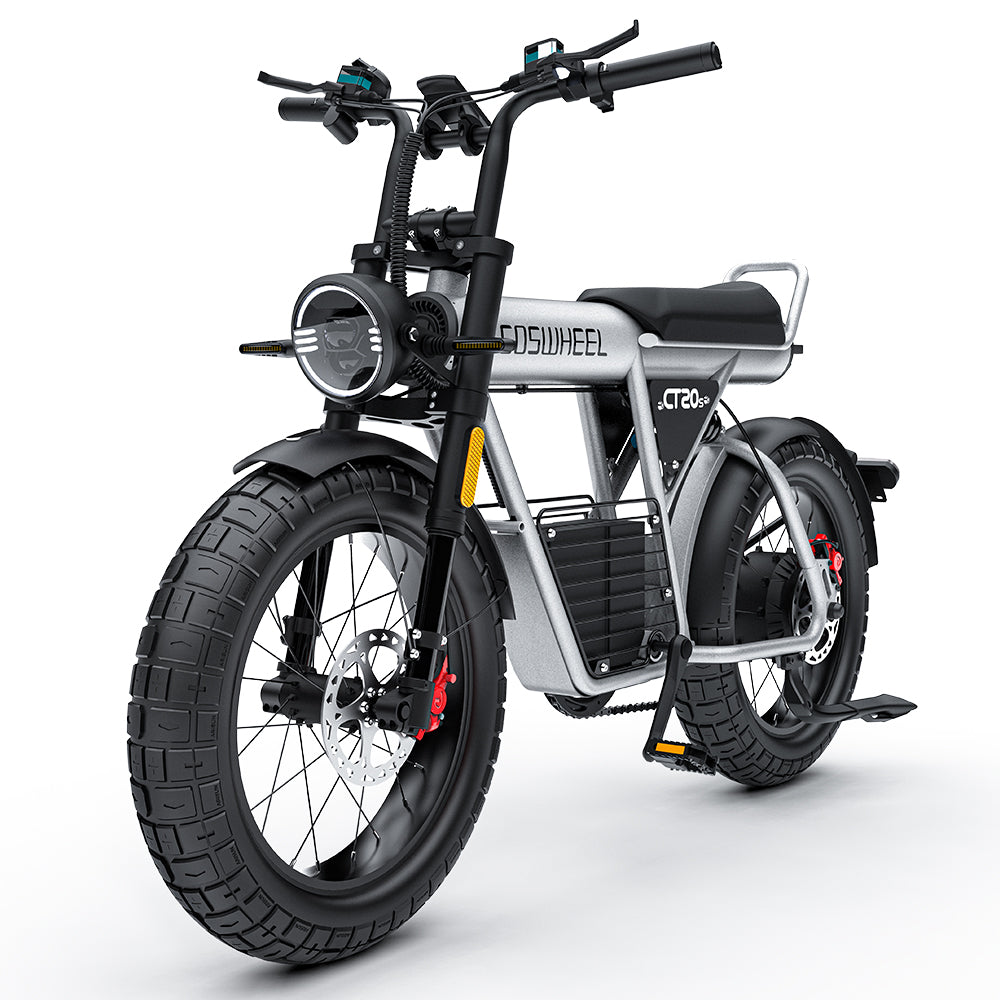

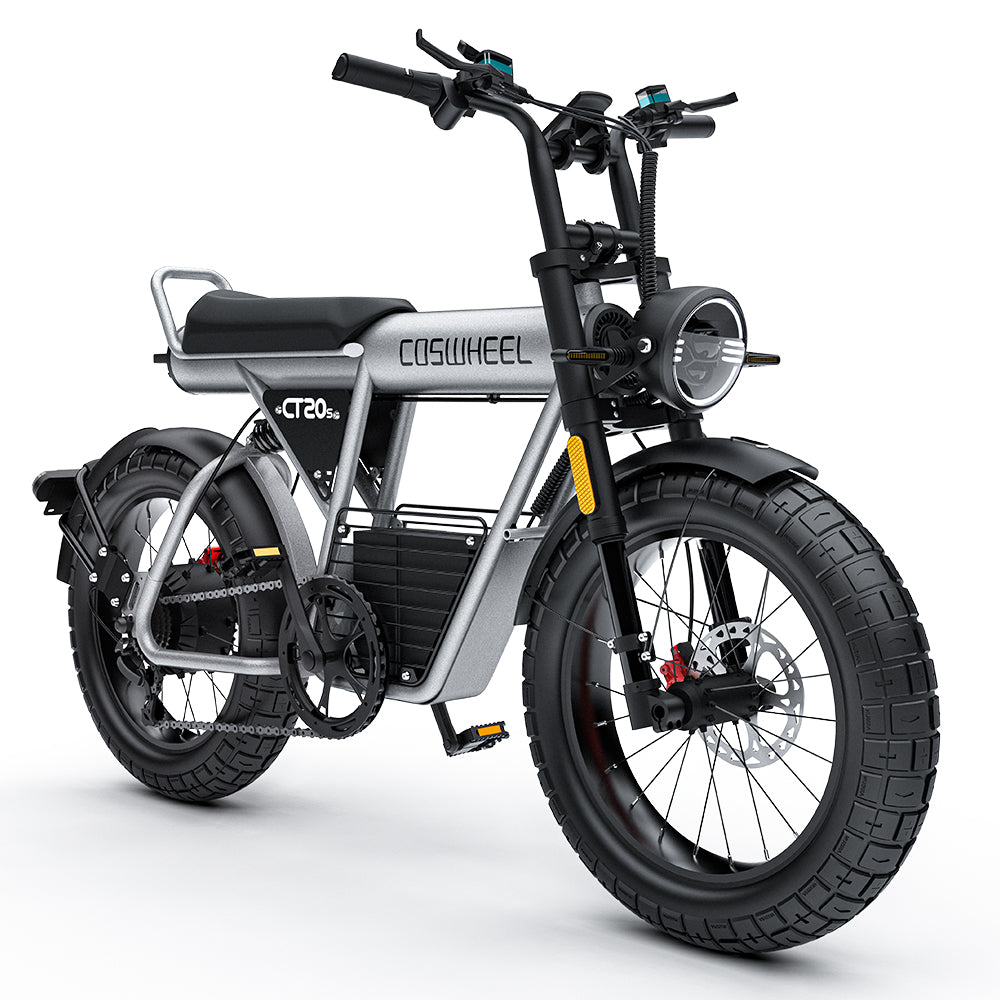

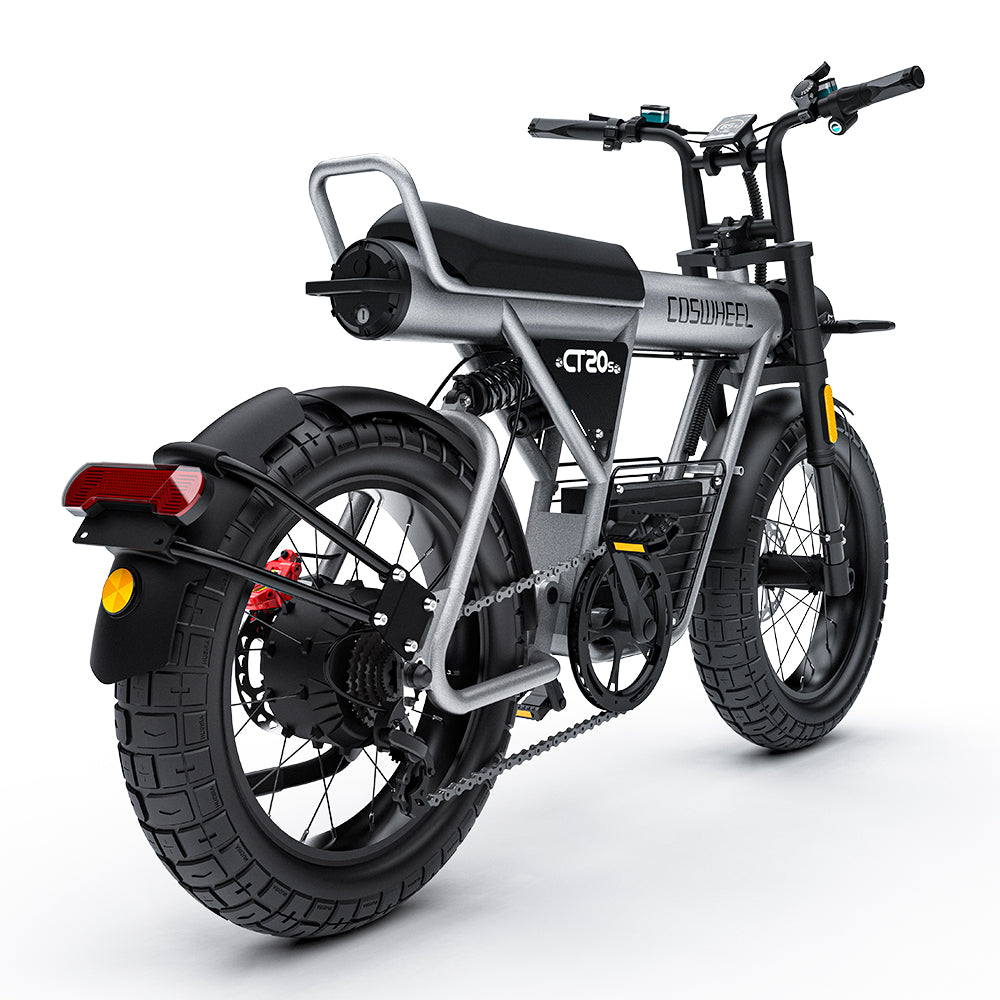

Coswheel CT20S Fat Tire eBike

Coswheel CT20S Fat Tire eBike

$2,349.00 USD
$2,599.00 USD $2,349.00 USD
Sale Sold out
Color: Silver

Unmatched Power. Unrivaled Range.

The COSWHEEL CT20S delivers extreme performance with a high-output motor capable of reaching speeds up to 50mph in Off-Road Mode, giving riders explosive acceleration and confident control on any terrain. Paired with its long-range 60V battery system offering up to 100 miles of riding per charge, the CT20S sets a new standard for power, endurance, and freedom. Whether you’re carving through the city or exploring far beyond it, this machine is engineered to take you farther — and faster — than ever before.


Performance

  • Top Speed: Class 2/3, 28+ Mph (45+Km/h); Off-road Mode 50mph
  • Range: 55+miles (88km) in Class-2 throttle-only mode (pure electricity); 100+miles (161km) in Class-1 PAS (pedal assist)
  • Motor: 2000W-peak (Rated 1500W) Brushless Rear Hub Motor 120N.m

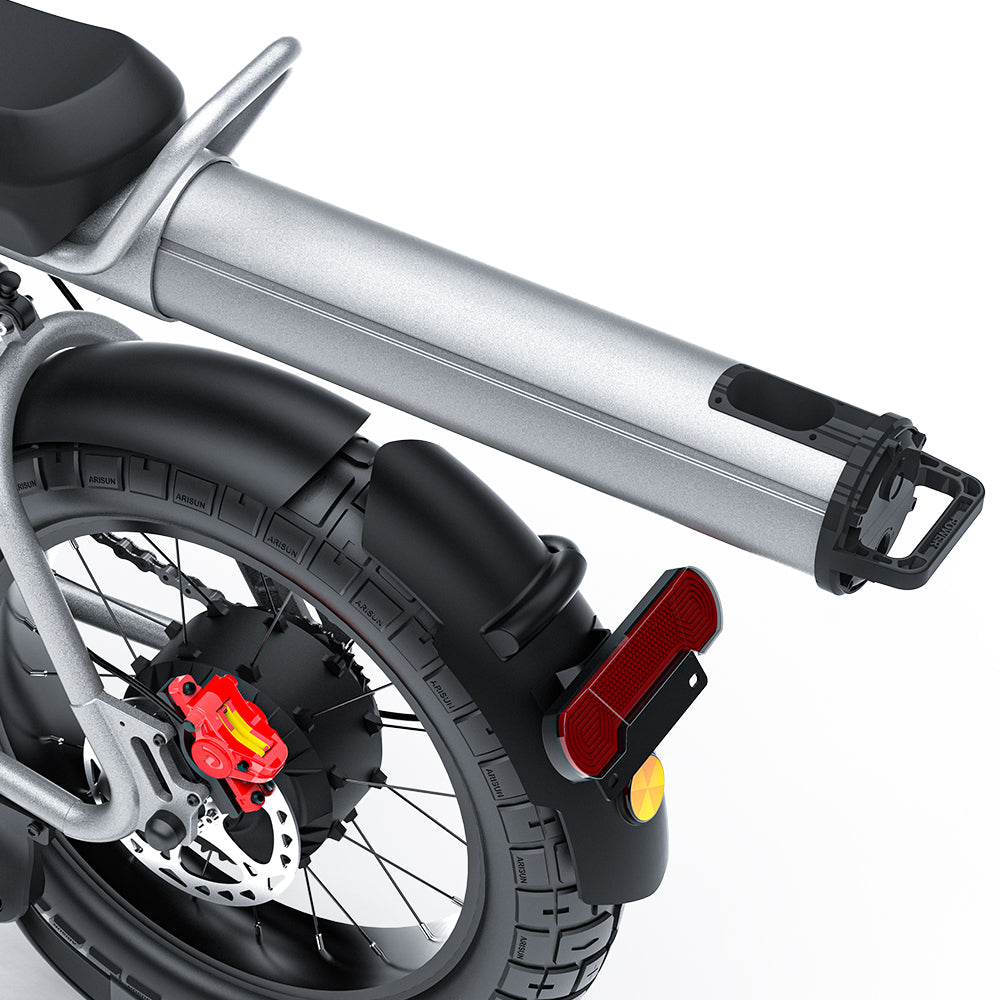

  • Battery: 60V 27.5Ah Battery (Lithium 18650 Cells)
  • Energy: 1650Wh
  • Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel

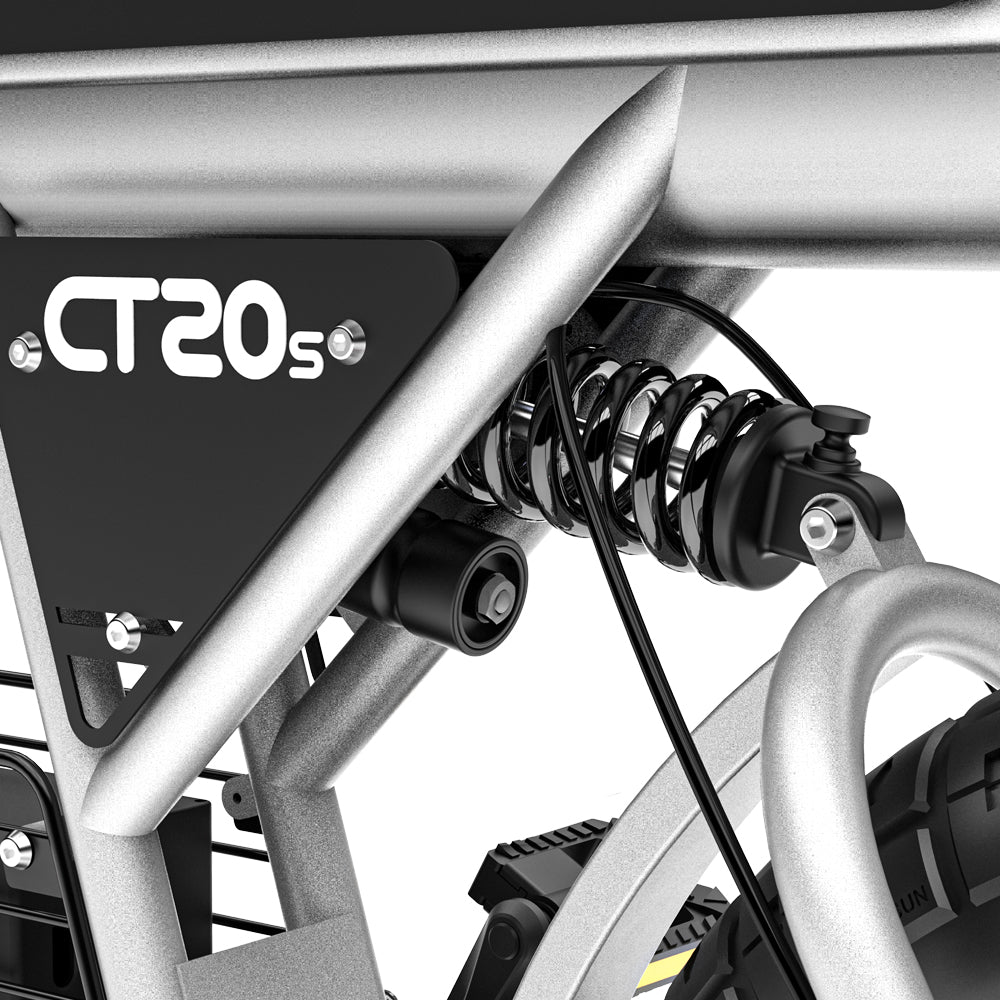

  • Rear Suspension: 180mm Travel

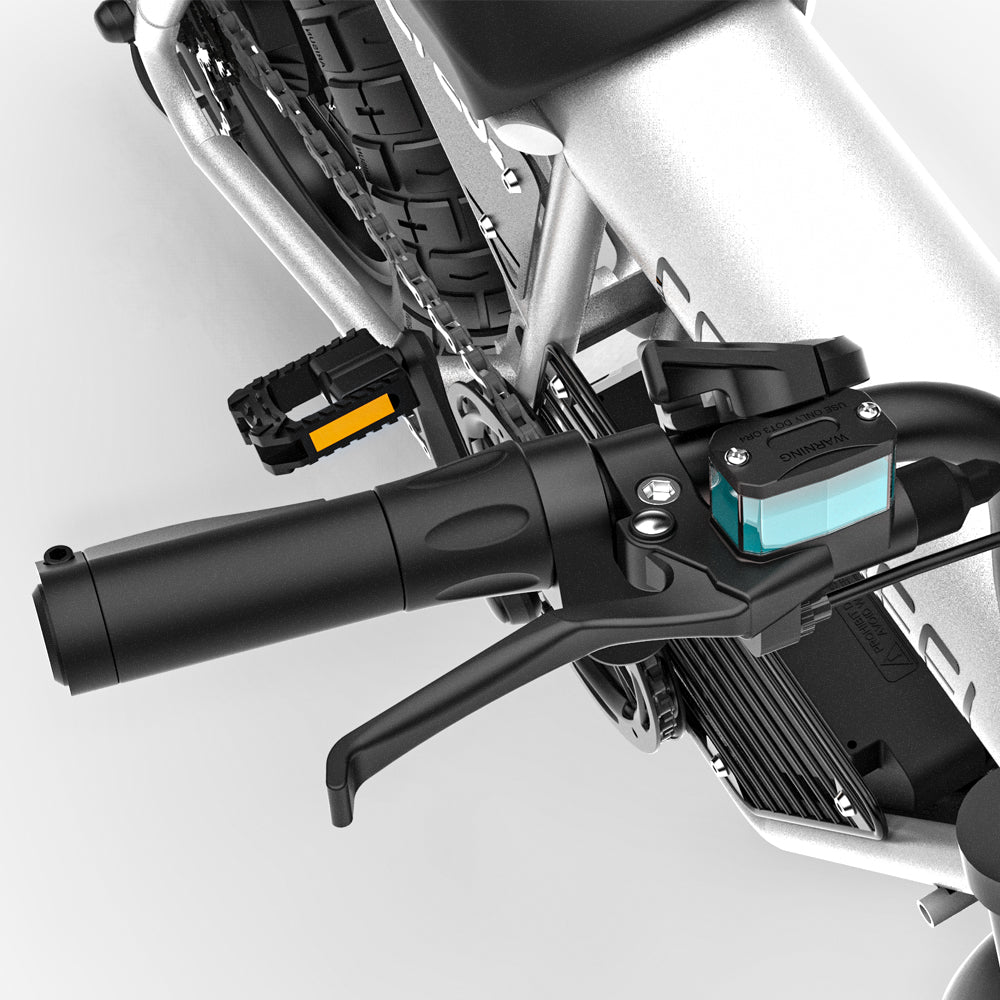

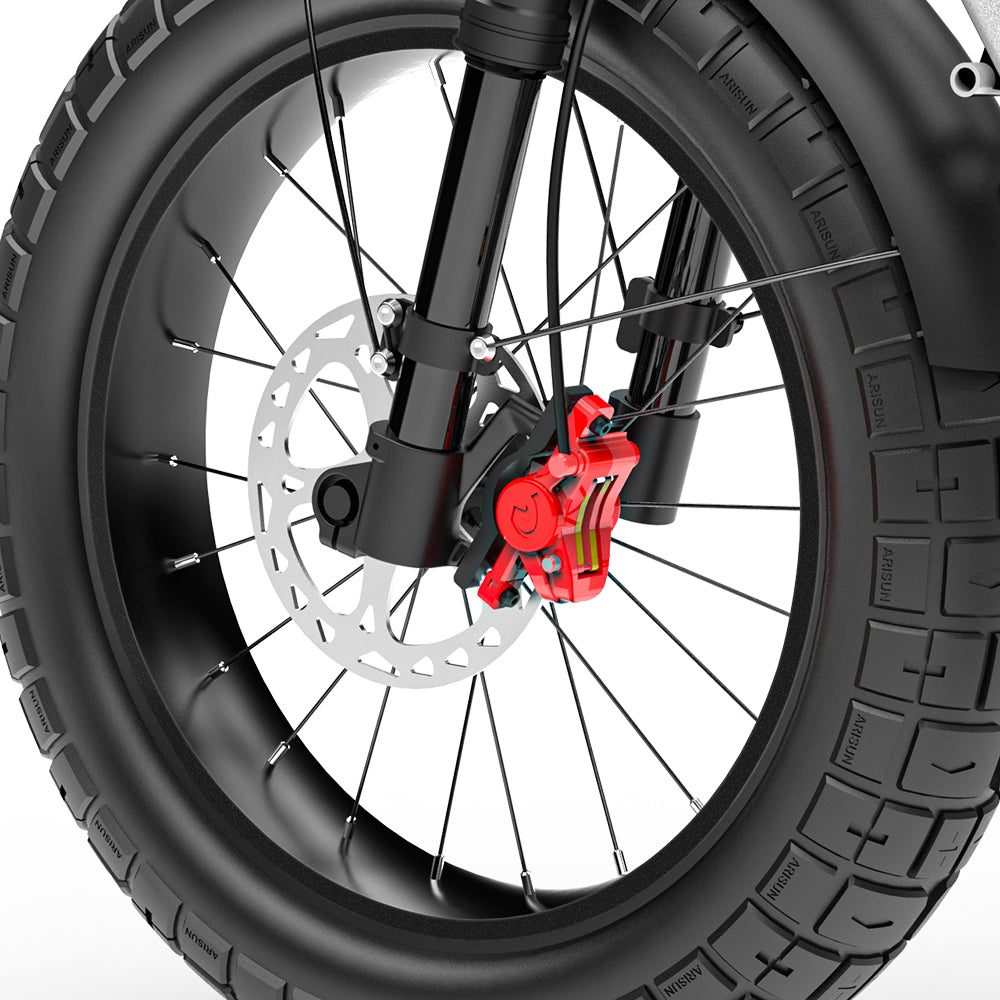

  • Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
  • Tires: Off-road Tire 20" * 5.0" IA-2149 with AV+Lining
  • Throttle: Thumb Throttle (New)

Electronics

  • Charger: 60V5A Charger
  • Charging Time: 3.5-8.0 Hours

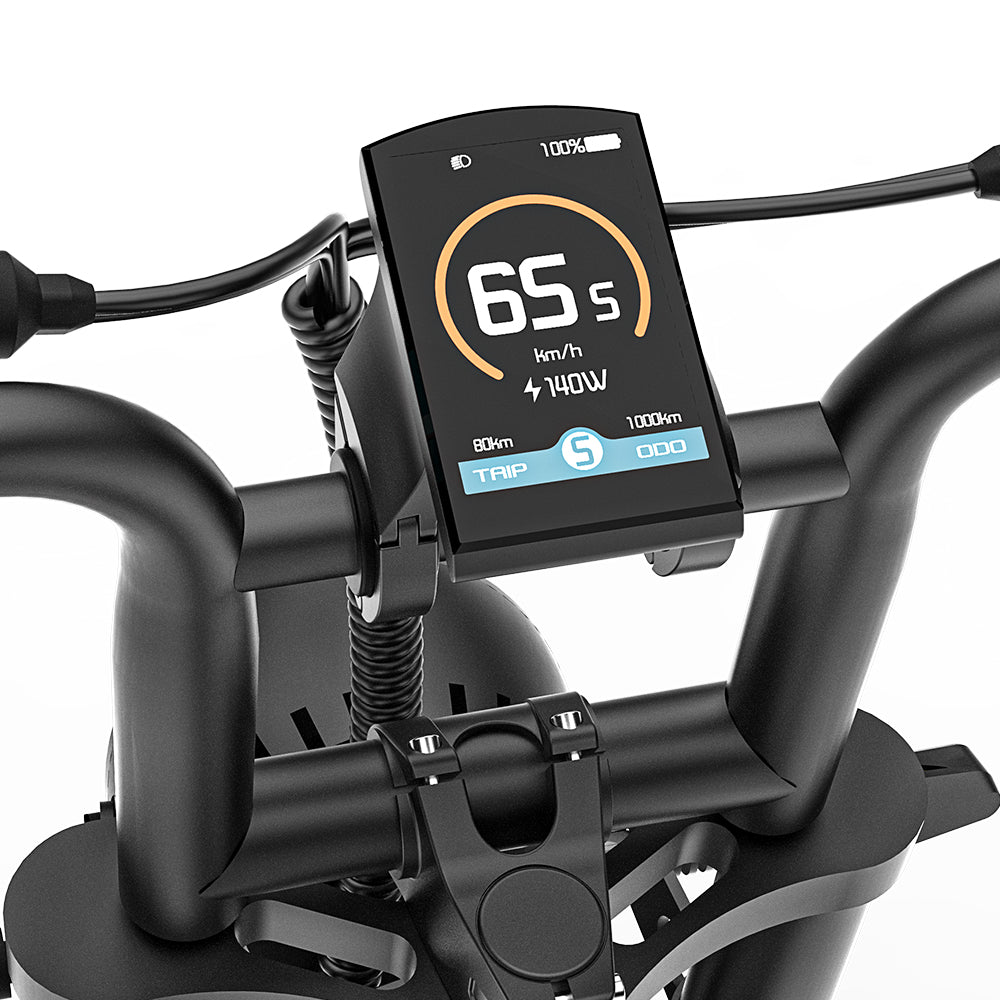

  • Display: Easy Read LCD Display
  • Controller: 60V 35A

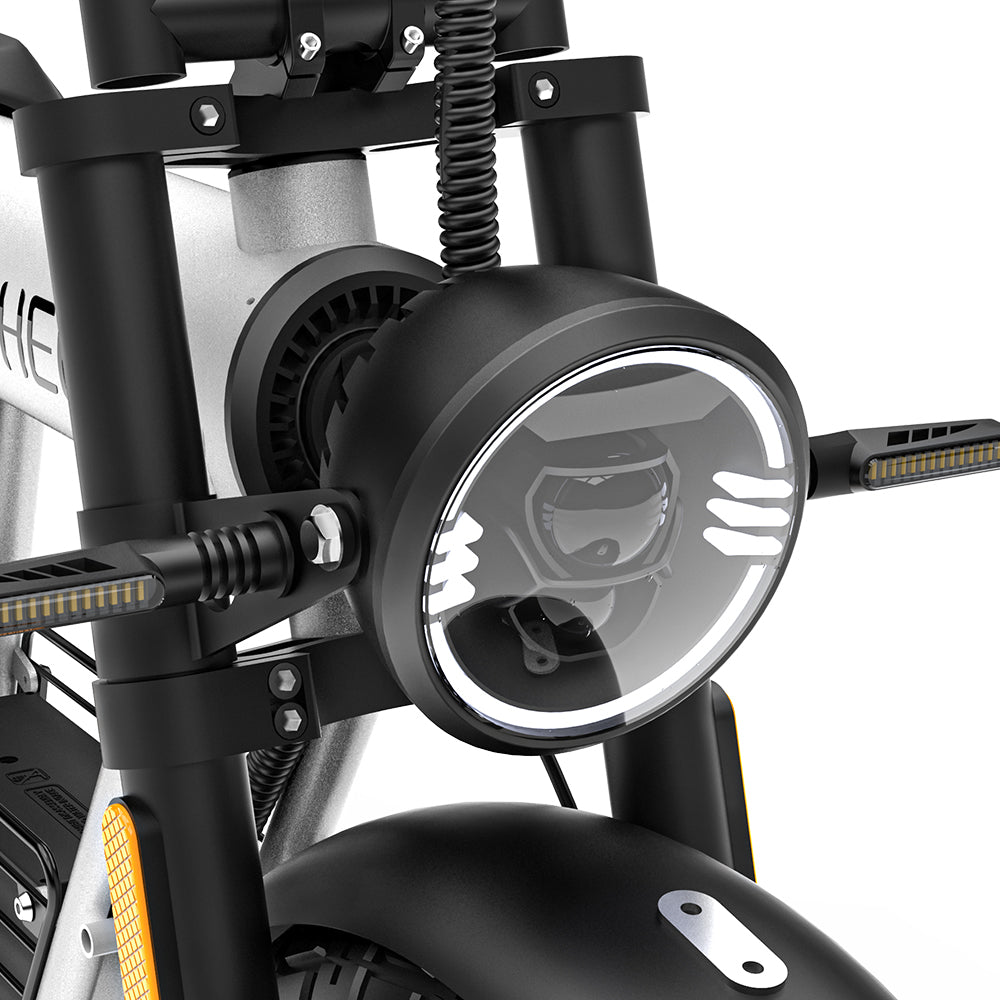

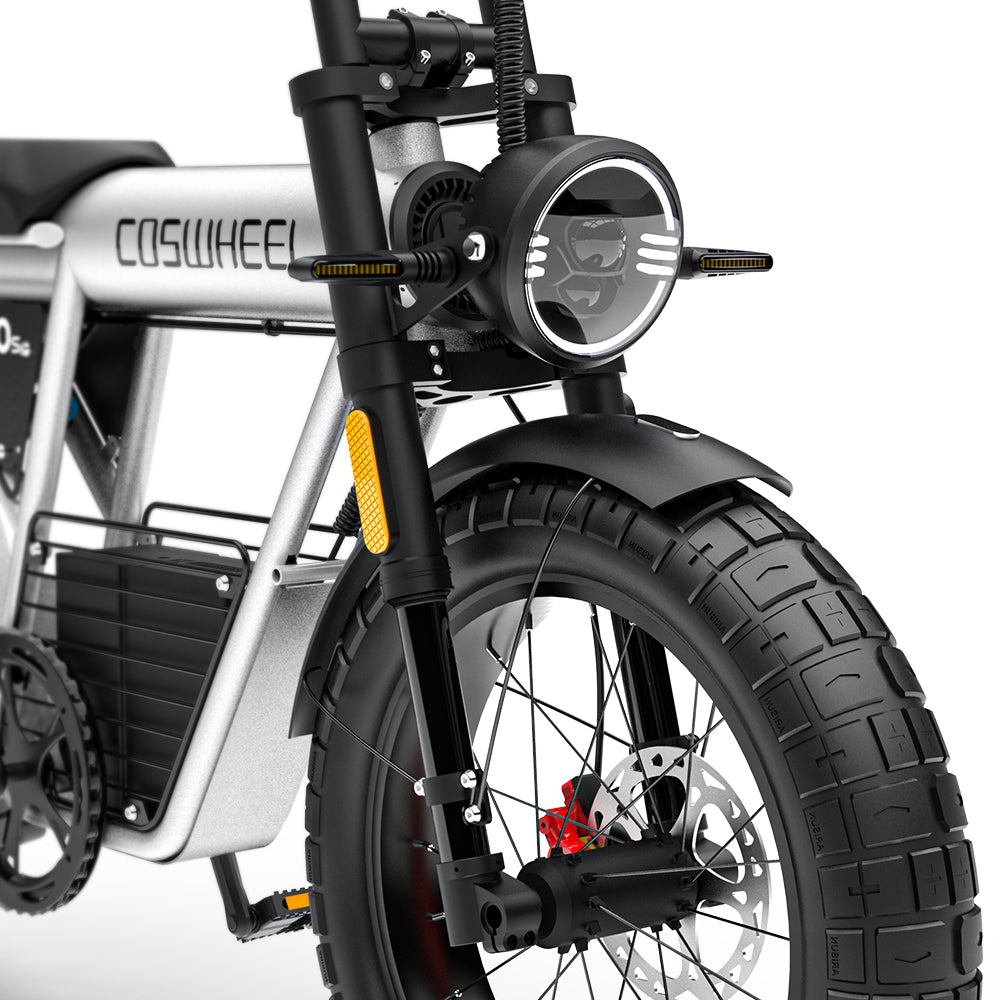

  • Front Light: Classic Angel Eye Headlight, 120 LUX

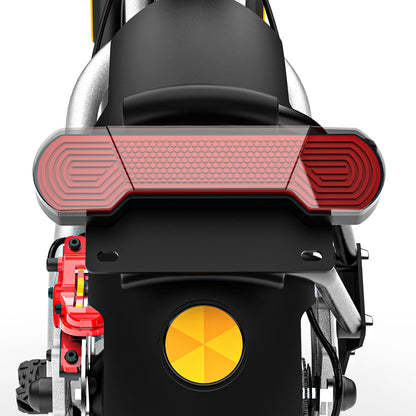

  • Rear Light: LED
  • Pedal Assist: 3 Levels
  • Sensors: Speed Sensor

Components

  • Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
  • Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2

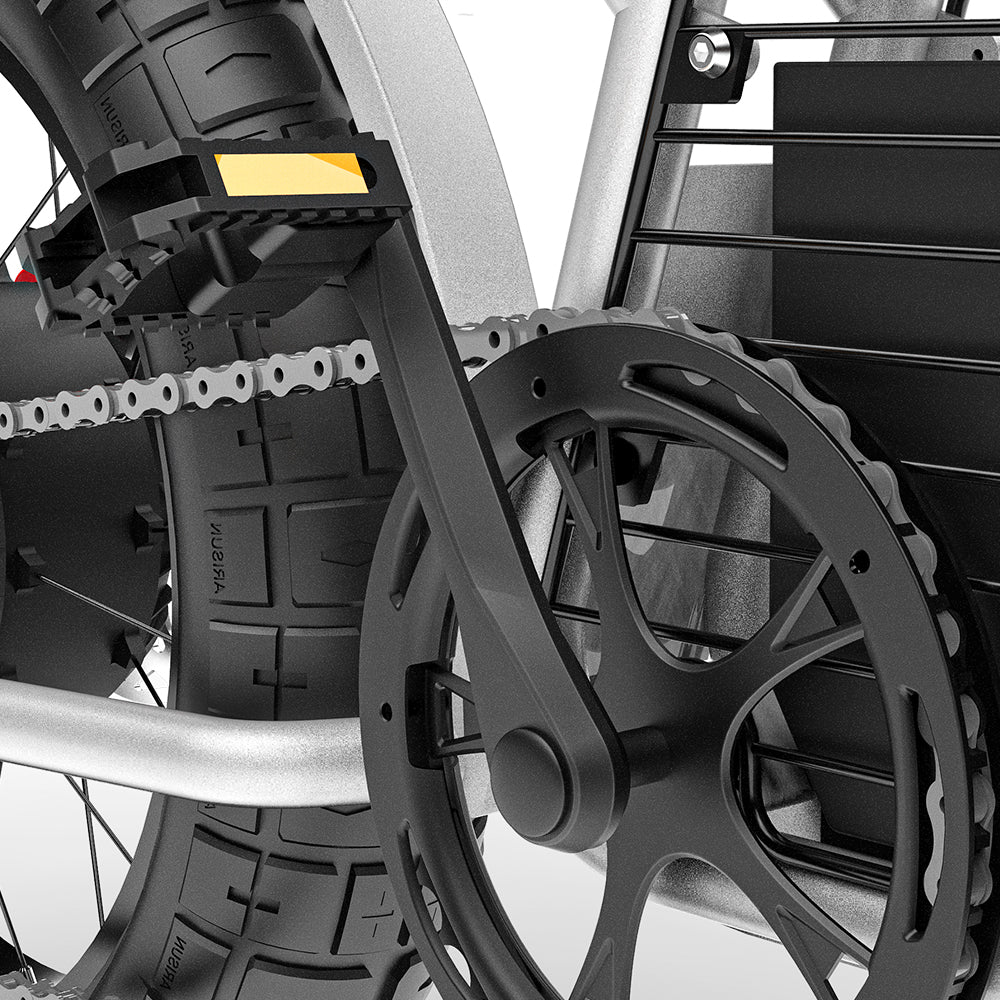

  • Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
  • Rear Derailleur: Shimano 7-Speed
  • Chain: 7-speed Anti-rust, 1/2" * 3/32"
  • Handlebars: Sand Black 31.8*660

Geometry

  • Suitable Height: 5'1" - 6'5"
  • Seat Height: 33.4" (85cm)
  • Bike Height: 45.3" (115cm)
  • Wheelbase: 45.3" (115cm)
  • Handlebar Width: 26.4" (67cm)
  • Bike Weight: ≥88lbs (with Battery) (≥40kg)
  • Maximum Load: 330lbs (150kg)
  • Safe Load: 265lbs (120kg)
  • Overall Size: 70.9" * 26.4" *45.3" (180*67*115cm)
  • Package Size: 59.4" * 14.2" * 35.4" (151*36*90cm)
