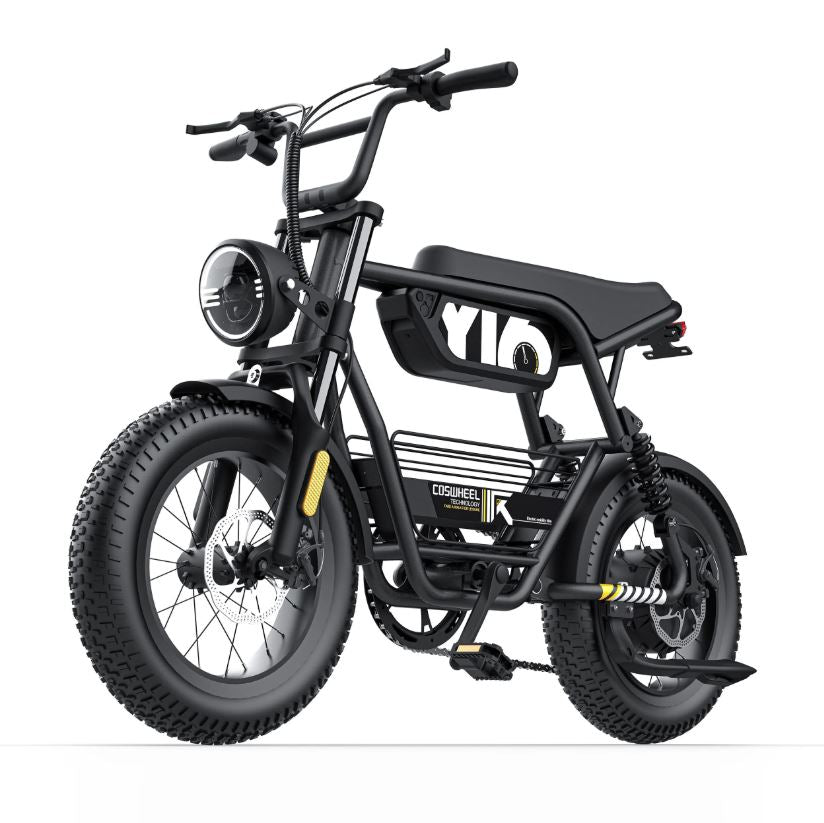

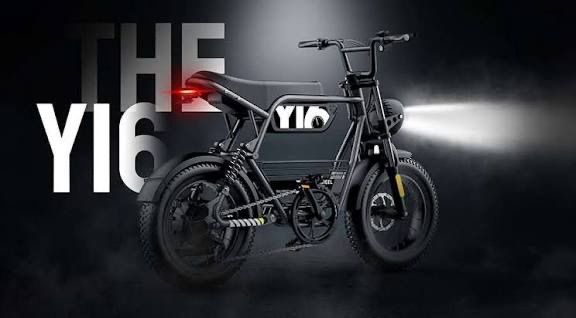

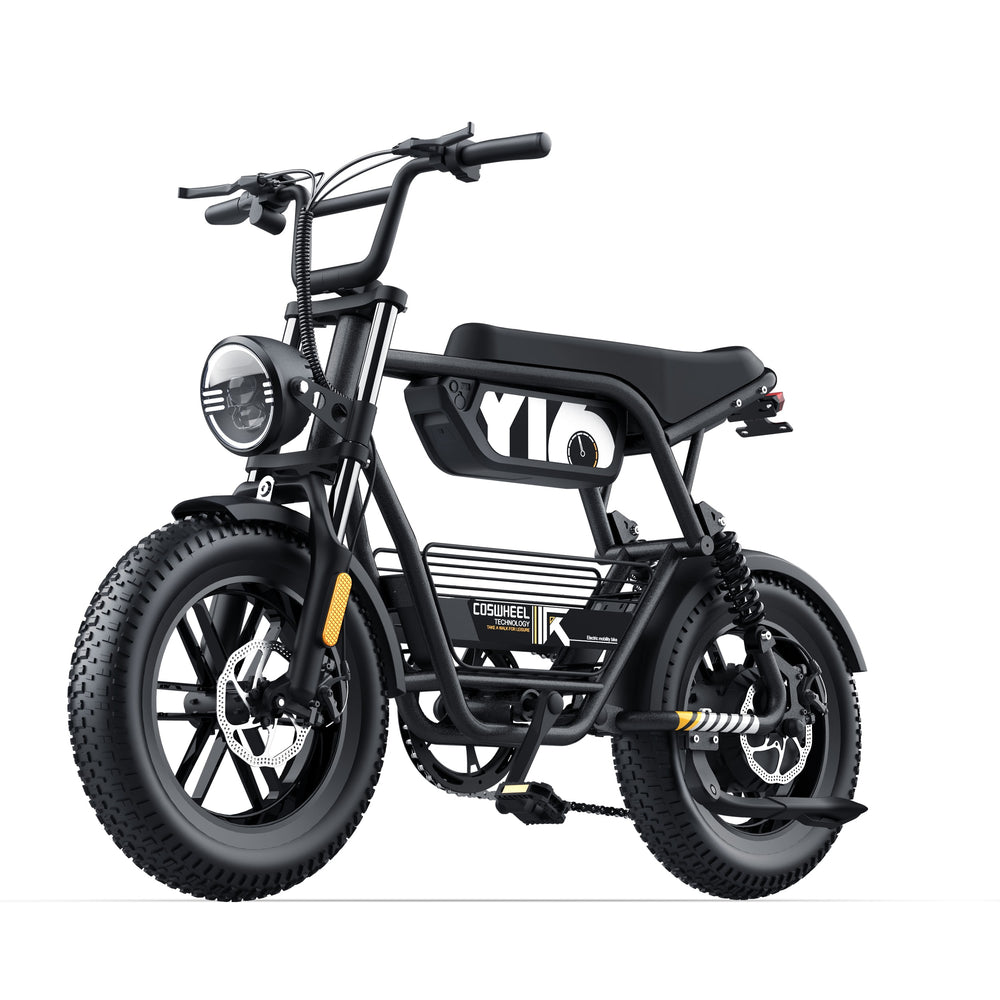

Coswheel Y16 Mini eBike

Coswheel Y16 Mini eBike

$999.00 USD
$999.00 USD
Sale Sold out
Color: Black

Smart Power for Growing Riders

Compact, durable, and designed specifically for teenagers and smaller riders, the COSWHEEL Y16 features a motorcycle-style seat, and a 750W motor (1000W-peak) to deliver real performance in a safe, confidence-inspiring package. Ideal for riders 4'6" to 5'10", the Y16 provides smooth handling, strong acceleration, and a comfortable ride for commuting to school, getting around town, or weekend fun. For parents: the Y16 is UL certified, meets all U.S. Class 2/3 regulations, and the top speed can be limited to 16mph for extra safety.


Performance

  • Top Speed: Class 2/3, 28mph (can be locked to 16mph)
  • Range: 30+miles in Class-2 throttle-only mode (pure electricity); 52+miles in Class-1 PAS (pedal assist)

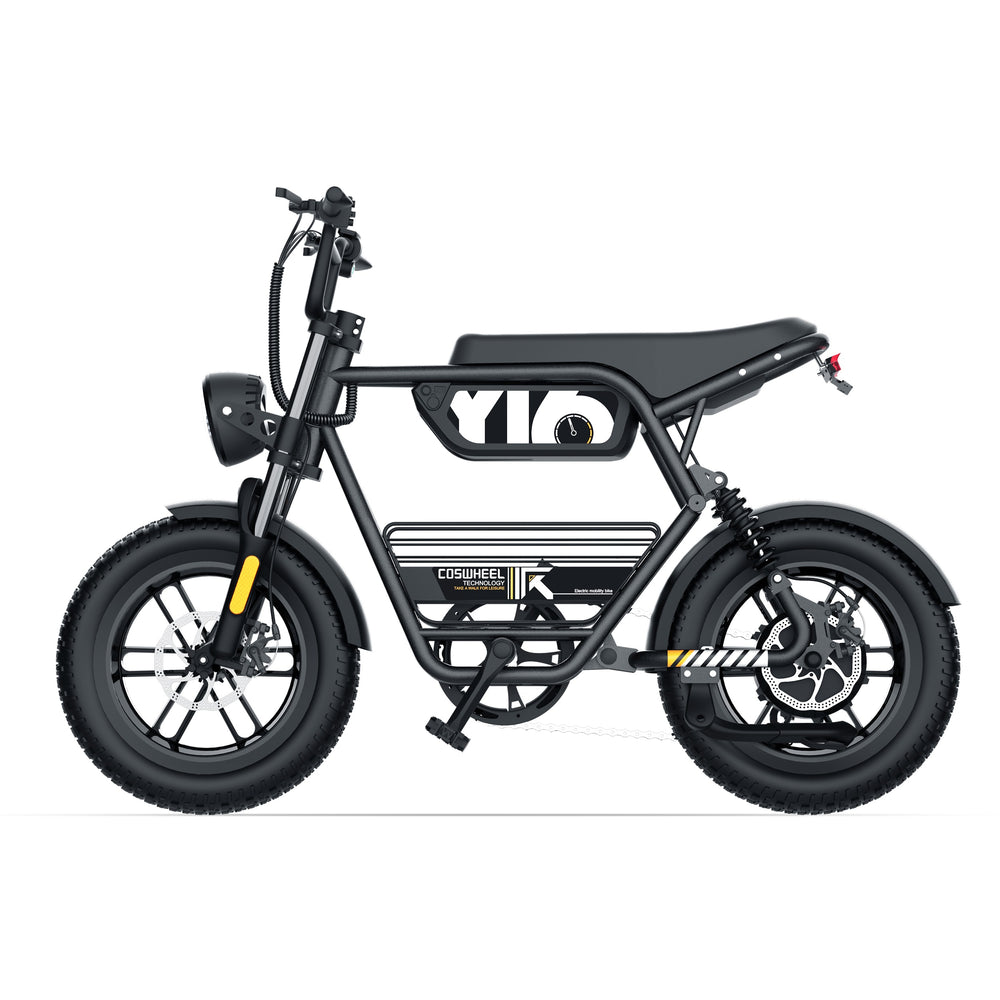

  • Motor: 48V 1000W-peak (750W nominal) Brushless Rear Hub Motor 50N.m
  • Battery: 48V 15Ah Battery (Lithium 18650 Cells)
  • Energy: 720Wh

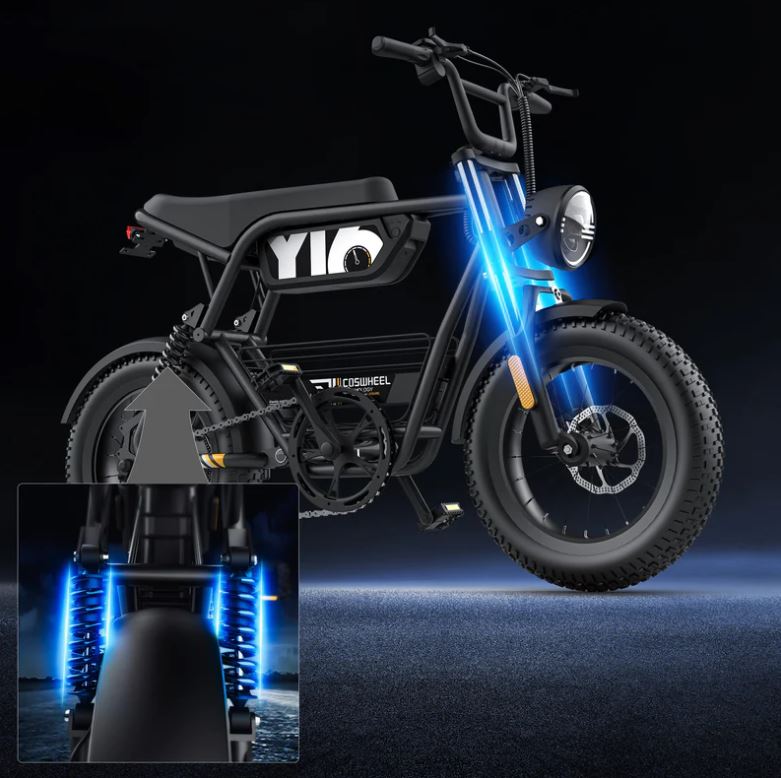

  • Front Suspension: Double-Crown Front Fork, Total Length 630mm, Gap 135mm, 80mm Travel
  • Rear Suspension: Dual Shock Absorbers, Hole Spacing 185mm, Poundage Wire Diameter 5mm
  • Brakes: Double Disc Brakes, Equipped with 160mm Stainless Brake Disc
  • Tires: ChaoYang All Terrain Tire 16" × 4.0" H5176 30TPI
  • Throttle: Grip Twist Throttle

Electronics

  • Charger: 48V3A Charger
  • Charging Time: 3.5-8.0 Hours

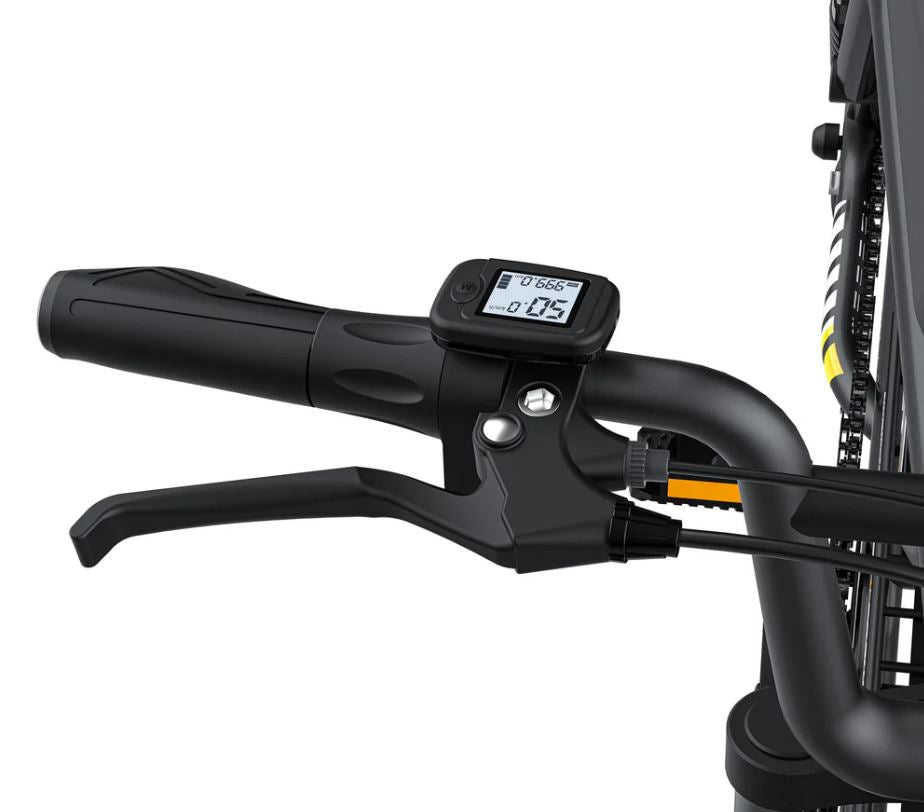

  • Display: Easy Read LCD Display
  • Controller: 48V 22A

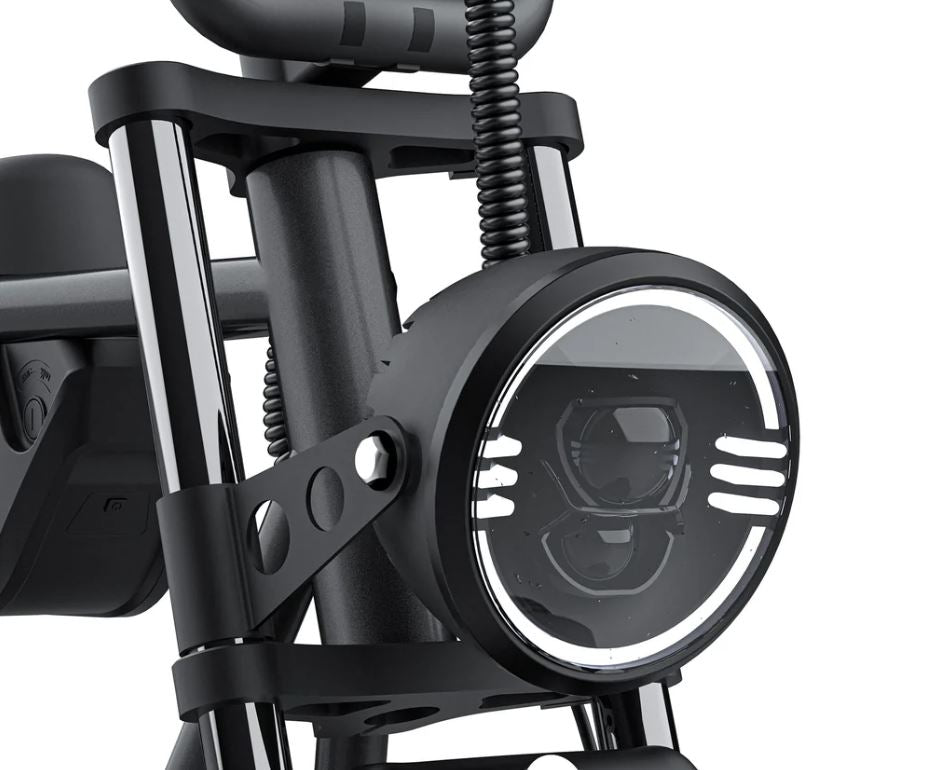

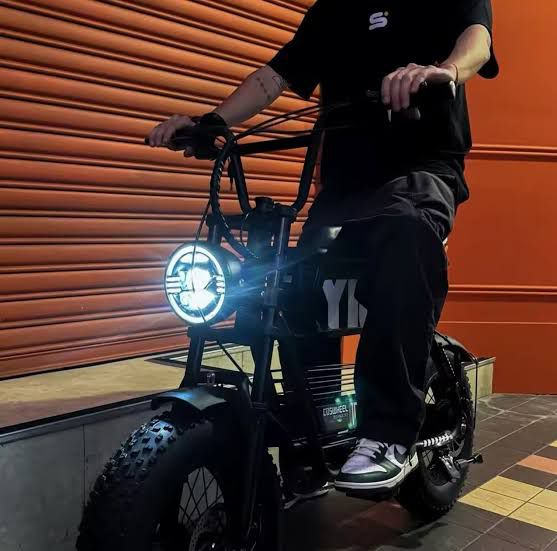

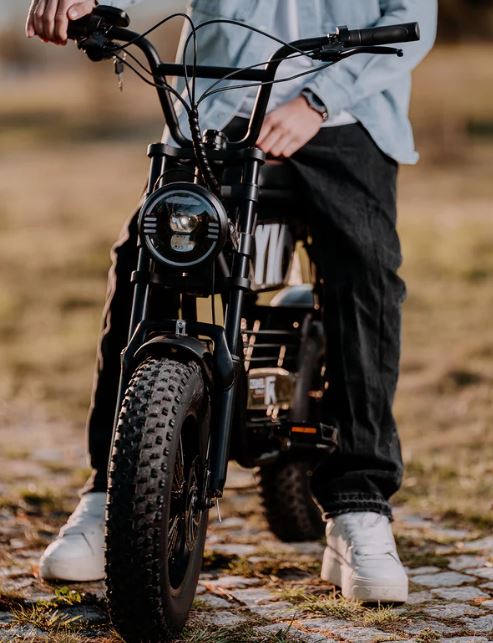

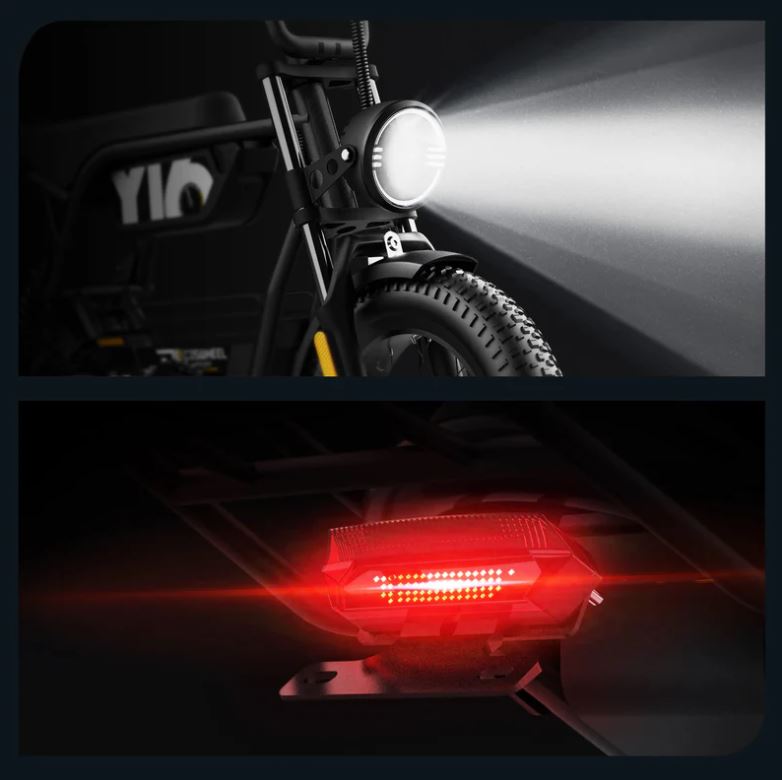

  • Front Light: Classic Angel Eye Headlight, 120 LUX
  • Rear Light: LED
  • Sensors: Speed Sensor

Components

  • Frame: Carbon steel (stronger for impact resistance, teen-friendly)
  • Pedal: Black, Aluminum alloy with reflectors

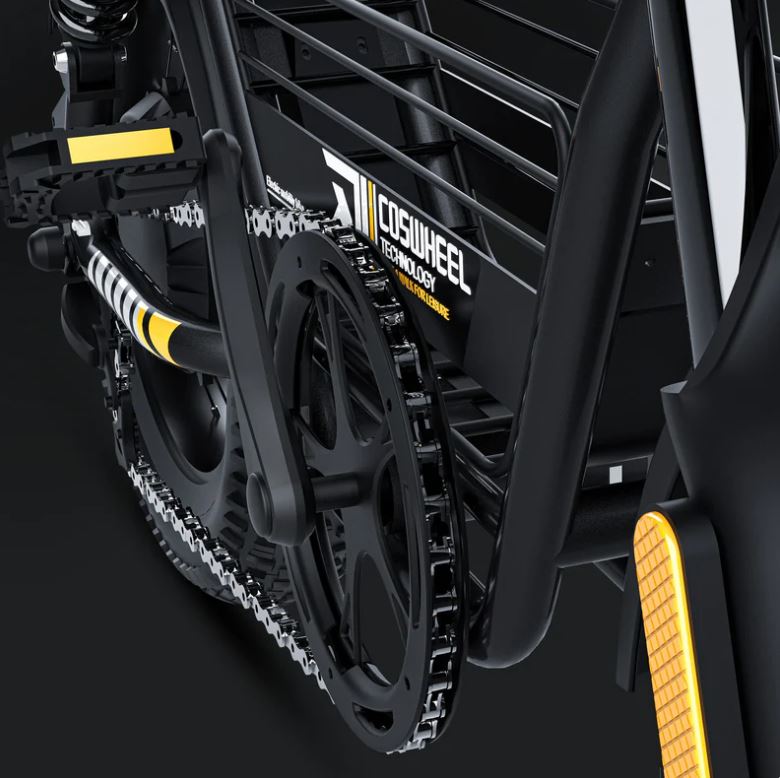

  • Crank: 46T Double Cover*Ffish Shape
  • Rear Derailleur: Single Speed
  • Chain: Anti-rust, 116 Mesh
  • Handlebars: Black, 25.4*L:640mm*H:180mm, 17°

Geometry

  • Suitable Height: 4'11" - 5'11"
  • Seat Height: 29.53" (75cm)
  • Bike Height: 39.37" (100cm)
  • Wheelbase: 38.58" (98cm)
  • Handlebar Width: 25.59" (65cm)
  • Bike Weight: ≥97lbs (with Battery) (≥44kg)
  • Maximum Load: 330lbs (150kg)
  • Safe Load: 265lbs (120kg)
  • Overall Size: 60.24" * 25.59" *39.37" (153*65*100cm)
  • Package Size: 55.91" * 12.60" * 32.28" (142*32*82cm)
